Graphic Measurement Guidelines
Doors
• Measure the width and height of the door. Including below the kickplate when present. Measure while door is open.
• If the door has glass, measure the width and height of the glass within the window frame on the door.
• Measure the distance from the glass to the top of the door and to the edge of the door.
Windows
For each window pane, measure the inside of framework - glass only.
Please provide a measurement for the full size of each pane of glass AND the width of the frames/mullions.
Column/Pillar Wraps
_” w of side
_” w of side
Measure entire width of each side of square column and height from floor to ceiling or how tall it should be finished.
_” circumference
_” h

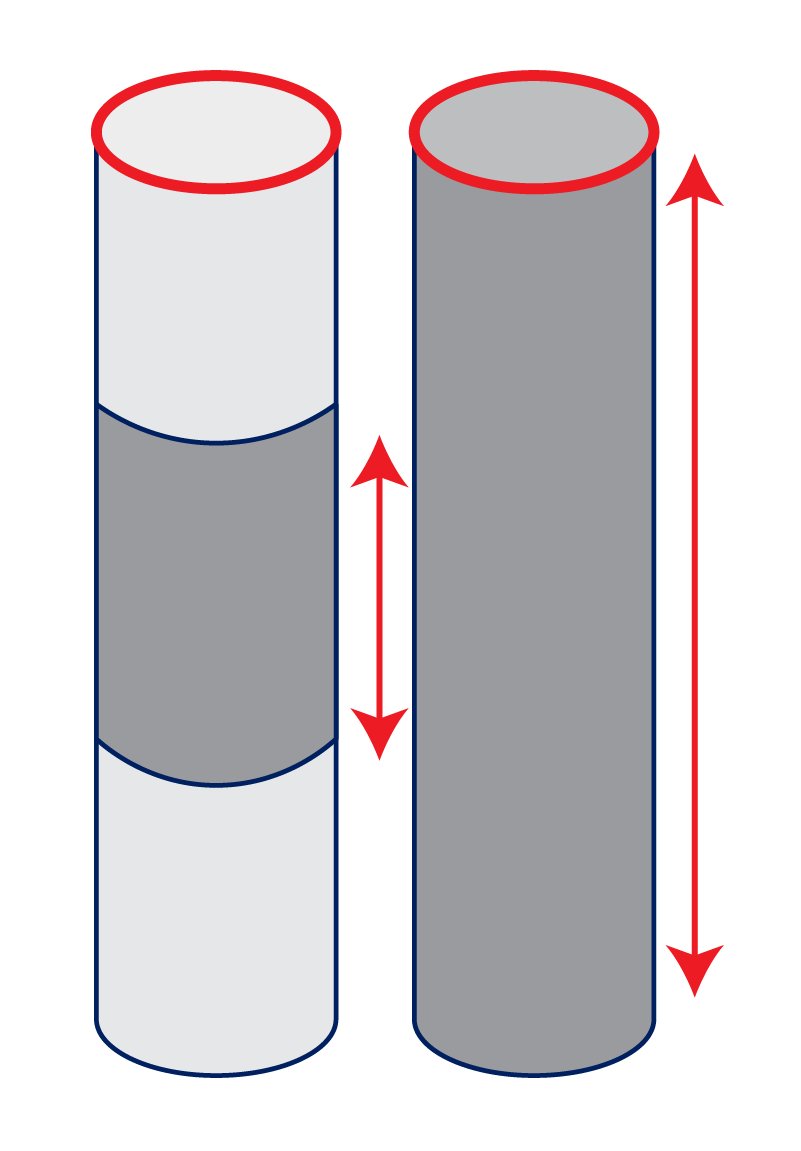

Measure a round pillar with a surveyors or cloth measuring tape and the height of the pillar from the floor to ceiling or how tall it should be finished.
Windscreen & Mesh
Height measurement should be one knuckle from the top to one knuckle from the bottom.
If fence poles are on the same side of the fence that the mesh is going on, measure pole to pole sections.
If fence poles are on the opposite side of the fence that the mesh is going on, measure entire length of the fence.
All fence mesh/windscreen will have sewn in webbing and grommets every 2 feet to increase durability and strength.
Endcaps
If the endcap is angled, measure top & bottom widths.
Frosted Banding
Please provide a measurement for the space between panes or width of the frames.
Full size of each pane of glass must be noted.
Locker Inserts
Locker insert cannot go behind the hook.
Measure up to the bottom edge of the hook only.
Wall Banding
